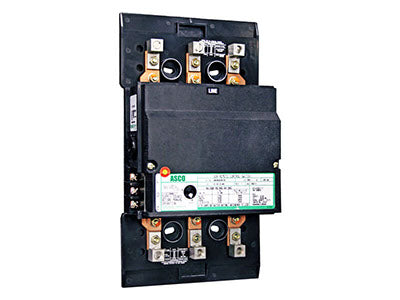

75 AMP, 3 POLE, 120 VOLT COIL CABLE LUGS, P/N 92037531

75 AMP, 3 POLE, 120 VOLT COIL CABLE LUGS, P/N 92037531

Regular price $1,023.55
/

Stocking Status: Normally stocked, but currently backordered due to parts shortages, please call for availability


Only 80 items in stock!

MANUFACTURER: ASCO
PRODUCT LINE: LIGHTING CONTACTOR
SERIES: 920
AMPERAGE: 75
POLES: 3
COIL VOLTAGE: 120
MOUNTING: CABLE LUGS
PART NUMBER: 92037531

FEATURES

  • PATENTED SINGLE-SOLENOID, BY-DIRECTIONAL OPERATING MECHANISM.
  • MECHANICALLY HELD, ELECTRICALLY OPERATED WITH CONTACTS POWER-DRIVEN TO OPEN AND CLOSED POSITIONS.
  • VISUAL POSITION INDICATORS SHOW OPEN/CLOSED POSITION OF EACH MAIN CONTACT.
  • PROVISION FOR MANUAL OPERATION DURING INSPECTION.
  • FULLY RATED FOR ALL TYPES OF LIGHTING LOADS, INCLUDING METAL HALIDE, MERCURY VAPOR, QUARTZ HALOGEN, TUNGSTEN AND FLUORESCENT.
  • COILS AVAILABLE IN RATINGS FROM 120 THROUGH 480 VOLTS.
  • AVAILABLE EITHER IN A OPEN STYLE, MOUNTED ON A BACKER PLATE (SUB PANEL) SUITABLE FOR MOUNTING IN A NEMA ENCLOSURE, OR ENCLOSED IN A NEMA 1 ENCLOSURE.
  • UL LISTED, CSA APPROVED.
  • STANDARD CONFIGURATION IS A SINGLE COIL AND AN OPEN AND CLOSE CONTACT (SEE INSTALLATION MANUAL).
  • OPTIONAL CONTROL MODULES FOR 2 WIRE, 3 WIRE, START/STOP, IN 120 THROUGH 277VAC.
