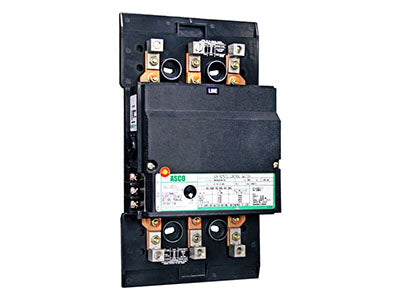

150 AMP, 3 POLE, 120 VOLT COIL CABLE LUGS, P/N 920315031 * MANUFACTURE DISCONTINUED *

FEATURES

• PATENTED SINGLE-SOLENOID, BY-DIRECTIONAL OPERATING MECHANISM.
• MECHANICALLY HELD, ELECTRICALLY OPERATED WITH CONTACTS POWER-DRIVEN TO OPEN AND CLOSED POSITIONS.
• VISUAL POSITION INDICATORS SHOW OPEN/CLOSED POSITION OF EACH MAIN CONTACT.
• PROVISION FOR MANUAL OPERATION DURING INSPECTION.
• FULLY RATED FOR ALL TYPES OF LIGHTING LOADS, INCLUDING METAL HALIDE, MERCURY VAPOR, QUARTZ HALOGEN, TUNGSTEN AND FLUORESCENT.
• COILS AVAILABLE IN RATINGS FROM 120 THROUGH 480 VOLTS.
• AVAILABLE EITHER IN A OPEN STYLE, MOUNTED ON A BACKER PLATE (SUB PANEL) SUITABLE FOR MOUNTING IN A NEMA ENCLOSURE, OR ENCLOSED IN A NEMA 1 ENCLOSURE.
• UL LISTED, CSA APPROVED.
• STANDARD CONFIGURATION IS A SINGLE COIL AND AN OPEN AND CLOSE CONTACT (SEE INSTALLATION MANUAL).
• OPTIONAL CONTROL MODULES FOR 2 WIRE, 3 WIRE, START/STOP, IN 120 THROUGH 277VAC.
