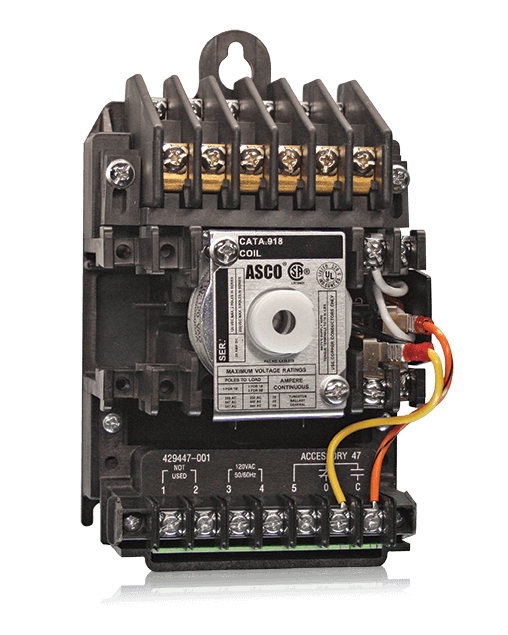

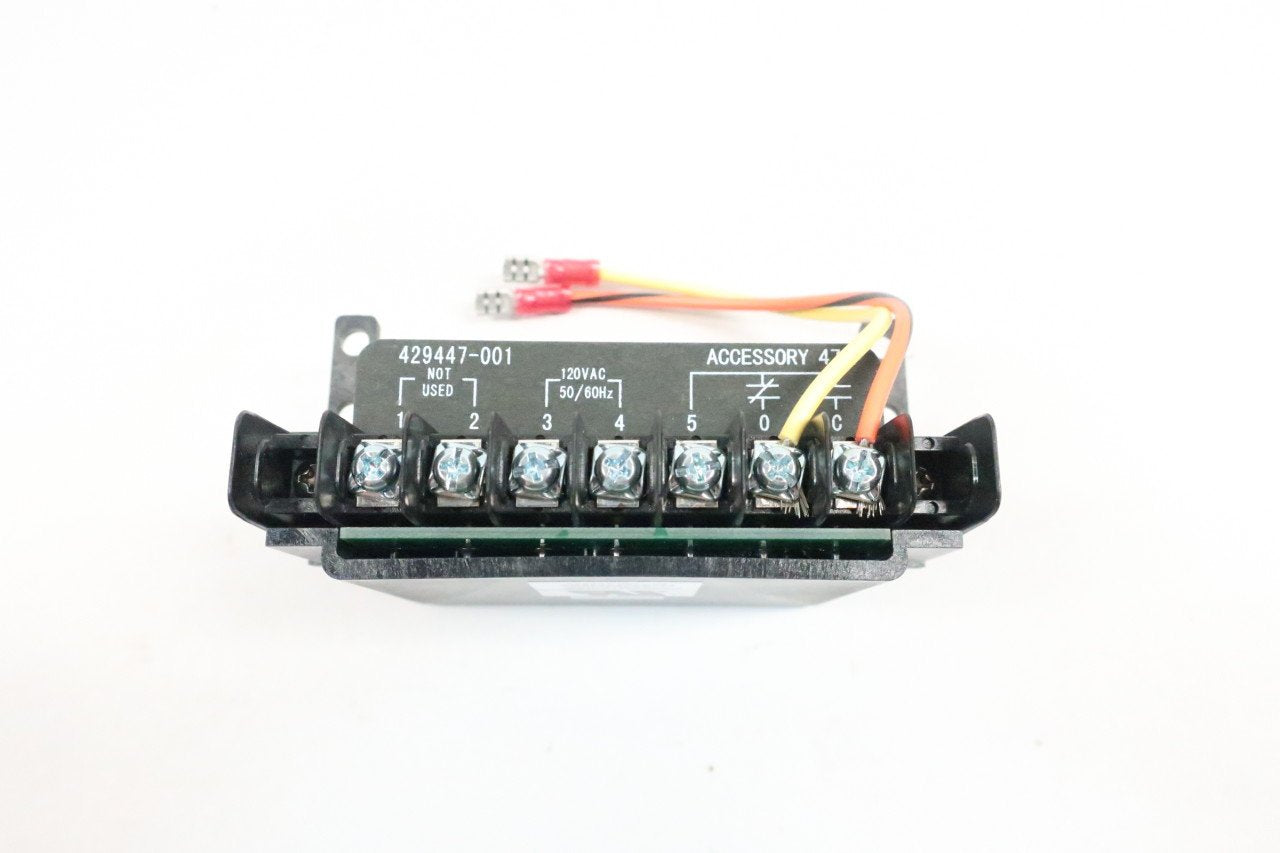

ASCO 918 ACCESSORY 2 WIRE CONTROL, 120 VOLT COIL *** MANUFACTURER DISCONTINUED ***

FEATURES

• PATENTED SINGLE-SOLENOID, BY-DIRECTIONAL OPERATING MECHANISM.
• MECHANICALLY HELD, ELECTRICALLY OPERATED WITH CONTACTS POWER-DRIVEN TO OPEN AND CLOSED POSITIONS.
• VISUAL POSITION INDICATORS SHOW OPEN/CLOSED POSITION OF EACH MAIN CONTACT.
• ACCOMMODATES 2 TO 12 POLES (CONTACTS).
• RATED 30 AMPERES TO 600 VOLTS AC
• FULLY RATED FOR ALL TYPES OF LIGHTING LOADS, INCLUDING METAL HALIDE, MERCURY VAPOR, QUARTZ HALOGEN, TUNGSTEN AND FLUORESCENT.
• COILS AVAILABLE IN RATINGS FROM 110 THROUGH 480 VOLTS.
• RATED FOR 1-1/2 HORSEPOWER AT 120 VAC.
• AVAILABLE EITHER IN AS OPEN STYLE, OR HOUSED IN A  9"W X 12"H X 4"D NEMA 1 ENCLOSURE.
• UL LISTED, CSA APPROVED.
• STANDARD CONFIGURATION IS A SINGLE COIL AND AN OPEN AND CLOSE CONTACT (SEE WIRING DIAGRAMS)
• OPTIONAL CONTROL MODULES FOR 2 WIRE, 3 WIRE, START/STOP, IN 12VDC THROUGH 277VAC.
